shapes.Shape

class rewalt.shapes.Shape

Bases: OgPoset

Inductive subclass of ogposets.OgPoset for shapes of cells and diagrams.

Properly formed objects of the class are unique encodings of the regular molecules from the theory of diagrammatic sets (plus the empty shape, which is not considered a regular molecule).

To create shapes, we start from basic constructors such as empty(), point(), or one of the named shape constructors, such as globe(), simplex(), cube().

Then we generate new shapes by gluing basic shapes together with paste(), to_inputs(), to_outputs(), or by producing new higher-dimensional shapes with operations such as atom(), gray(), join().

When possible, the constructors place the shapes in appropriate subclasses of separate interest, which include the globes, the oriented simplices, the oriented cubes, and the positive opetopes. This is to enable the specification of special methods for subclasses of shapes.

The following diagram summarises the hierarchy of subclasses of shapes:

 Simplex  Cube  OpetopeTree  Theta
 |    |\  |\     |      |      |
 |    | \ | \ Opetope  GlobeString
 |    |  \|  \   |    /
 |    |   \   \  Globe
 |    |   |\   \/    |
Empty |   | \  /\    |
      |   |  \/  \   |
      |   |  /\   \  |
      |   | /  \   \ |
      |   |/    \   \|
      Point      Arrow

Currently only the Cube and Simplex classes have special methods implemented.

Methods

`all_layerings`()	Returns an iterator on all layerings of a shape of dimension `n` into shapes with a single `n`-dimensional element, pasted along their `(n-1)`-dimensional boundary.
`arrow`()	Constructs the arrow, the unique 1-dimensional atomic shape.
`atom`(fst, snd, **params)	Given two shapes with identical round boundaries, returns a new atomic shape whose input boundary is the first one and output boundary the second one.
`atom_inclusion`(element)	Returns the inclusion of the closure of an element, which is an atomic shape, in the shape.
`boundary`([sign, dim])	Returns the inclusion of the boundary of a given orientation and dimension into the shape.
`cube`([dim])	Constructs the oriented cube of a given dimension.
`draw`(**params)	Bound version of `strdiags.draw()`.
`draw_boundaries`(**params)	Bound version of `strdiags.draw_boundaries()`.
`dual`(shape, dims, *params)	Returns the shape with orientations reversed in given dimensions.
`empty`()	Constructs the initial, empty shape.
`generate_layering`()	Assigns a layering to the shape, iterating through all the layerings, and returns it.
`globe`([dim])	Constructs the globe of a given dimension.
`gray`(*shapes)	Returns the Gray product of any number of shapes.
`id`()	Returns the identity map on the shape.
`inflate`([collapsed])	Given a closed subset of the boundary of the shape, forms a cylinder on the shape, with the sides incident to the closed subset collapsed, and returns its projection map onto the original shape.
`initial`()	Returns the unique map from the initial, empty shape.
`join`(*shapes)	Returns the join of any number of shapes.
`merge`()	Returns the unique atomic shape with the same boundary, if the shape is round.
`paste`(fst, snd[, dim])	Given two shapes and `k` such that the output `k`-boundary of the first is equal to the input `k`-boundary of the second, returns their pasting along the matching boundaries.
`paste_along`(fst, snd, **params)	Given a span of shape maps, where one is the inclusion of the input (resp output) `k`-boundary of a shape, and the other the inclusion of a round subshape of the output (resp input) `k`-boundary of another shape, returns the pasting (pushout) of the two shapes along the span.
`point`()	Constructs the terminal shape, consisting of a single point.
`simplex`([dim])	Constructs the oriented simplex of a given dimension.
`suspend`(shape[, n])	Returns the n-fold suspension of a shape.
`terminal`()	Returns the unique map to the point, the terminal shape.
`theta`(*thetas)	Inductive constructor for the objects of the Theta category, sometimes known as Batanin cells.
`to_inputs`(positions, other[, dim])	Returns the pasting of another shape along a round subshape of the input `k`-boundary, specified by the positions of its `k`-dimensional elements.
`to_outputs`(positions, other[, dim])	Returns the pasting of another shape along a round subshape of the output `k`-boundary, specified by the positions of its `k`-dimensional elements.

Attributes

`isatom`	Returns whether the shape is an atom (has a greatest element).
`isround`	Shorthand for `all().isround`.
`layers`	Returns the current layering of the shape.
`rewrite_steps`	Returns the sequence of rewrite steps associated to the current layering of the shape.

property isatom

Returns whether the shape is an atom (has a greatest element).

Returns: isatom – True if and only if the shape has a greatest element.
Return type: bool

Examples

>>> arrow = Shape.arrow()
>>> assert arrow.isatom
>>> assert not arrow.paste(arrow).isatom

property isround: Shorthand for all().isround.

property layers

Returns the current layering of the shape.

Returns: layers – The current layering.
Return type: list[ShapeMap]

Examples

>>> arrow = Shape.arrow()
>>> globe = Shape.globe(2)
>>> cospan = globe.paste(arrow).paste(
...         arrow.paste(globe), cospan=True)
>>> shape = cospan.target
>>> assert shape.layers == [cospan.fst, cospan.snd]

property rewrite_steps

Returns the sequence of rewrite steps associated to the current layering of the shape.

The 0-th rewrite step is the input boundary of the shape. For n > 0, the n-th rewrite step is the output boundary of the (n-1)-th layer.

Returns: rewrite_steps – The current sequence of rewrite steps.
Return type: list[ShapeMap]

Examples

>>> arrow = Shape.arrow()
>>> globe = Shape.globe(2)
>>> cospan = globe.paste(arrow).paste(
...         arrow.paste(globe), cospan=True)
>>> shape = cospan.target
>>> assert shape.rewrite_steps == [
...         cospan.fst.input,
...         cospan.fst.output,
...         cospan.snd.output]

static atom(fst, snd, **params)

Given two shapes with identical round boundaries, returns a new atomic shape whose input boundary is the first one and output boundary the second one.

Parameters

fst (Shape) – The input boundary shape.
snd (Shape) – The output boundary shape.

Keyword Arguments

cospan (bool) – Whether to return the cospan of inclusions of the input and output boundaries (default is False).

Returns

atom – The new atomic shape (optionally with the cospan of inclusions of its boundaries).

Return type

Shape | ogposets.OgMapPair

Raises

ValueError – If the boundaries do not match, or are not round.

Examples

We create a 2-dimensional cell shape with two input 1-cells and one output 2-cell.

>>> arrow = Shape.arrow()
>>> binary = arrow.paste(arrow).atom(arrow)
>>> binary.draw(path='docs/_static/img/Shape_atom.png')

static paste(fst, snd, dim=None, **params)

Given two shapes and k such that the output k-boundary of the first is equal to the input k-boundary of the second, returns their pasting along the matching boundaries.

Parameters

fst (Shape) – The first shape.
snd (Shape) – The second shape.
dim (int, optional) – The dimension of the boundary along which they will be pasted (default is min(fst.dim, snd.dim) - 1).

Keyword Arguments

cospan (bool) – Whether to return the cospan of inclusions of the two shapes into the pasting (default is False).

Returns

paste – The pasted shape (optionally with the cospan of inclusions of its components).

Return type

Shape | ogposets.OgMapPair

Raises

ValueError – If the boundaries do not match.

Examples

We can paste two 2-dimensional globes either “vertically” along their 1-dimensional boundary or “horizontally” along their 0-dimensional boundary.

>>> globe = Shape.globe(2)
>>> vert = globe.paste(globe)
>>> horiz = globe.paste(globe, 0)
>>> vert.draw(path='docs/_static/img/Shape_paste_vert.png')

>>> horiz.draw(path='docs/_static/img/Shape_paste_horiz.png')

We can also check that the interchange equation holds.

>>> assert vert.paste(vert, 0) == horiz.paste(horiz)
>>> horiz.paste(horiz).draw(
...     path='docs/_static/img/Shape_paste_interchange.png')

static paste_along(fst, snd, **params)

Given a span of shape maps, where one is the inclusion of the input (resp output) k-boundary of a shape, and the other the inclusion of a round subshape of the output (resp input) k-boundary of another shape, returns the pasting (pushout) of the two shapes along the span.

In practice, it is convenient to use to_inputs() and to_outputs() instead, where the data of the span is specified by k and the positions of the k-dimensional elements in the round subshape along which the pasting occurs.

Parameters

fst (ShapeMap) – The first inclusion.
snd (ShapeMap) – The second inclusion.

Keyword Arguments

wfcheck (bool) – Check if the span gives rise to a well-formed pasting (default is True).
cospan (bool) – Whether to return the cospan of inclusions of the two shapes into the pasting (default is False).

Returns

paste_along – The pasted shape (optionally with the cospan of inclusions of its components).

Return type

Shape | ogposets.OgMapPair

Raises

ValueError – If the pair of maps is not an injective span.

to_outputs(positions, other, dim=None, **params)

Returns the pasting of another shape along a round subshape of the output k-boundary, specified by the positions of its k-dimensional elements.

Parameters

positions (list[int] | int) – The positions of the outputs along which to paste. If given an integer n, interprets it as the list [n].
other (Shape) – The other shape to paste.
dim (int, optional) – The dimension of the boundary along which to paste (default is self.dim - 1)

Keyword Arguments

cospan (bool) – Whether to return the cospan of inclusions of the two shapes into the pasting (default is False).

Returns

to_outputs – The pasted shape (optionally with the cospan of inclusions of its components).

Return type

Shape | ogposets.OgMapPair

Raises

ValueError – If the boundaries do not match, or the pasting does not produce a well-formed shape.

Examples

We create a 2-simplex and visualise it as a string diagram with the positions parameter enabled.

>>> simplex = Shape.simplex(2)
>>> simplex.draw(
...     positions=True, path='docs/_static/img/Shape_to_outputs1.png')

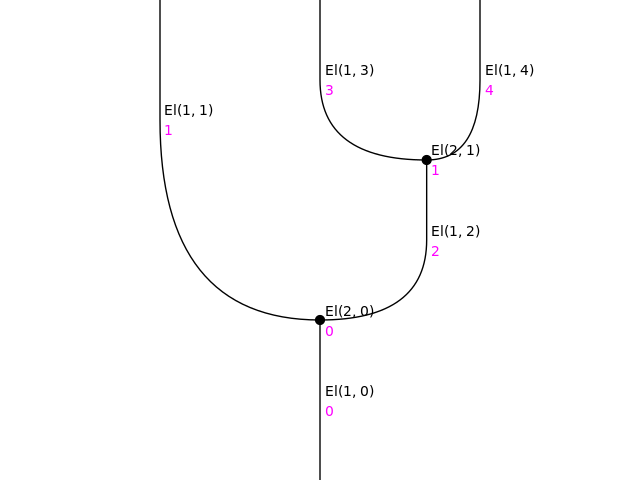

We paste another 2-simplex to the output in position 2.

>>> paste1 = simplex.to_outputs(2, simplex)
>>> paste1.draw(
...     positions=True, path='docs/_static/img/Shape_to_outputs2.png')

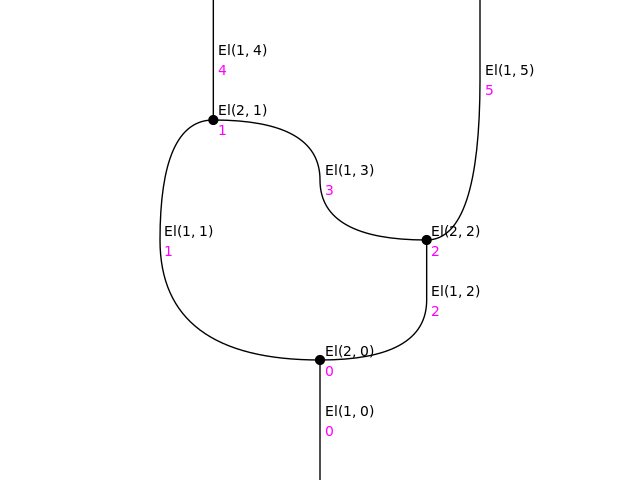

Finally, we paste the dual of a 2-simplex to the outputs in positions 2, 3.

>>> paste2 = paste1.to_outputs([1, 3], simplex.dual())
>>> paste2.draw(
...     positions=True, path='docs/_static/img/Shape_to_outputs3.png')

to_inputs(positions, other, dim=None, **params)

Returns the pasting of another shape along a round subshape of the input k-boundary, specified by the positions of its k-dimensional elements.

Parameters

positions (list[int] | int) – The positions of the inputs along which to paste. If given an integer n, interprets it as the list [n].
other (Shape) – The other shape to paste.
dim (int, optional) – The dimension of the boundary along which to paste (default is self.dim - 1)

Keyword Arguments

cospan (bool) – Whether to return the cospan of inclusions of the two shapes into the pasting (default is False).

Returns

to_inputs – The pasted shape (optionally with the cospan of inclusions of its components).

Return type

Shape | ogposets.OgMapPair

Raises

ValueError – If the boundaries do not match, or the pasting does not produce a well-formed shape.

Examples

We work dually to the example for to_outputs().

>>> binary = Shape.simplex(2).dual()
>>> binary.draw(
...     positions=True, path='docs/_static/img/Shape_to_inputs1.png')

>>> paste1 = binary.to_inputs(1, binary)
>>> paste1.draw(
...     positions=True, path='docs/_static/img/Shape_to_inputs2.png')

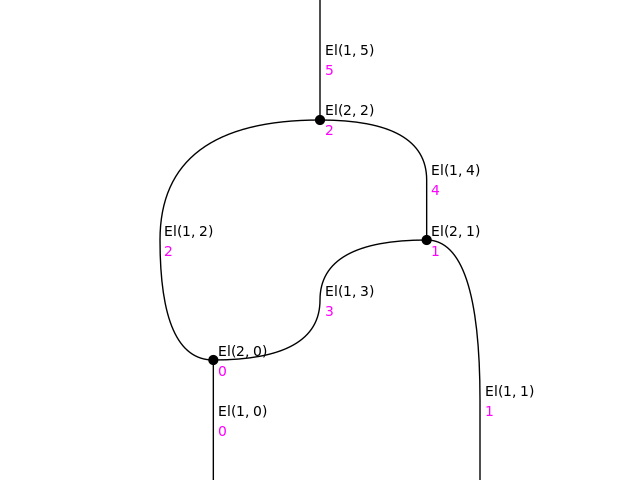

>>> paste2 = paste1.to_inputs([0, 1], binary.dual())
>>> paste2.draw(
...     positions=True, path='docs/_static/img/Shape_to_inputs3.png')

static suspend(shape, n=1)

Returns the n-fold suspension of a shape.

This static method can be also used as a bound method after an object is initialised, that is, shape.suspend(n) is equivalent to suspend(shape, n).

Parameters

shape (Shape) – The object to suspend.
n (int, optional) – The number of iterations of the suspension (default is 1).

Returns

suspension – The suspended shape.

Return type

Shape

Examples

The suspension of the point is the arrow, and the suspension of an arrow is the 2-globe.

>>> assert Shape.point().suspend() == Shape.arrow()
>>> assert Shape.arrow().suspend() == Shape.globe(2)

In general, the suspension of the n-globe is the (n+1)-globe.

static gray(*shapes)

Returns the Gray product of any number of shapes.

This method can be called with the math operator *, that is, fst * snd is equivalent to gray(fst, snd).

This static method can also be used as a bound method after an object is initialised, that is, fst.gray(*shapes) is equivalent to gray(fst, *shapes).

Parameters: *shapes (Shape) – Any number of shapes.
Returns: gray – The Gray product of the arguments.
Return type: Shape

Example

The point is a unit for the Gray product.

>>> point = Shape.point()
>>> arrow = Shape.arrow()
>>> assert point*arrow == arrow*point == arrow

The Gray product of two arrows is the oriented square (2-cube).

>>> arrow = Shape.arrow()
>>> assert arrow*arrow == Shape.cube(2)

In general, the Gray product of the n-cube with the k-cube is the (n+k)-cube.

static join(*shapes)

Returns the join of any number of shapes.

This method can be called with the shift operators >> and <<, that is, fst >> snd is equivalent to join(fst, snd) and fst << snd is equivalent to join(snd, fst).

This static method can also be used as a bound method after an object is initialised, that is, fst.join(*shapes) is equivalent to join(fst, *shapes).

Parameters: *shapes (Shape) – Any number of shapes.
Returns: join – The join of the arguments.
Return type: Shape

Examples

The empty shape is a unit for the join.

>>> empty = Shape.empty()
>>> point = Shape.point()
>>> assert empty >> point == point >> empty == point

The join of two points is the arrow, and the join of an arrow and a point is the 2-simplex.

>>> arrow = Shape.arrow()
>>> assert point >> point == Shape.arrow()
>>> assert arrow >> point == Shape.simplex(2)

In general, the join of an n-simplex with a k-simplex is the (n+k+1)-simplex.

static dual(shape, *dims, **params)

Returns the shape with orientations reversed in given dimensions.

The dual in all dimensions can also be called with the bit negation operator ~, that is, ~shape is equivalent to shape.dual().

This static method can be also used as a bound method after an object is initialised, that is, shape.dual(*dims) is equivalent to dual(shape, *dims).

Parameters

shape (Shape) – A shape.
*dims (int) – Any number of dimensions; if none, defaults to all dimensions.

Returns

dual – The shape, dualised in the given dimensions.

Return type

Shape

Examples

>>> arrow = Shape.arrow()
>>> simplex = Shape.simplex(2)
>>> binary = arrow.paste(arrow).atom(arrow)
>>> assert binary == simplex.dual()

>>> assoc_l = binary.to_inputs(0, binary)
>>> assoc_r = binary.to_inputs(1, binary)
>>> assert assoc_r == assoc_l.dual(1)

merge()

Returns the unique atomic shape with the same boundary, if the shape is round.

Returns: merge – The unique atomic shape with the same boundary.
Return type: Shape
Raises: ValueError – If the shape is not round.

Examples

We create a 2-dimensional shape with two input 1-cells and one output 1-cell, and paste it to itself along one of the inputs.

>>> arrow = Shape.arrow()
>>> binary = arrow.paste(arrow).atom(arrow)
>>> to_merge = binary.to_inputs(1, binary)
>>> to_merge.draw(path='docs/_static/img/Shape_merge1.png')

The “merged” shape is the 2-dimensional atom with three input 2-cells and one output 1-cell.

>>> merged = to_merge.merge()
>>> merged.draw(path='docs/_static/img/Shape_merge2.png')

static empty()

Constructs the initial, empty shape.

Returns: empty – The empty shape.
Return type: Empty

static point()

Constructs the terminal shape, consisting of a single point.

Returns: point – The point.
Return type: Point

static arrow()

Constructs the arrow, the unique 1-dimensional atomic shape.

Returns: arrow – The arrow.
Return type: Arrow

static simplex(dim=-1)

Constructs the oriented simplex of a given dimension.

Parameters: dim (int) – The dimension of the simplex (default is -1).
Returns: simplex – The simplex of the requested dimension.
Return type: Simplex

static cube(dim=0)

Constructs the oriented cube of a given dimension.

Parameters: dim (int) – The dimension of the cube (default is 0).
Returns: cube – The cube of the requested dimension.
Return type: Cube

static globe(dim=0)

Constructs the globe of a given dimension.

Parameters: dim (int) – The dimension of the globe (default is 0).
Returns: globe – The globe of the requested dimension.
Return type: Globe

static theta(*thetas)

Inductive constructor for the objects of the Theta category, sometimes known as Batanin cells.

Batanin cells are in 1-to-1 correspondence with finite plane trees. The constructor is based on this correspondence, using the well-known inductive definition of plane trees: given any number k of Batanin cells, it returns the Batanin cell encoded by a root with k children, to which the k plane trees encoding the arguments are attached.

Parameters: thetas (Theta) – Any number of Batanin cells.
Returns: theta – The resulting Batanin cell.
Return type: Theta

Examples

Every globe is a Batanin cell, encoded by the linear tree of length equal to its dimension.

>>> assert Shape.theta() == Shape.globe(0)
>>> assert Shape.theta(Shape.theta()) == Shape.globe(1)
>>> assert Shape.theta(Shape.theta(Shape.theta())) == Shape.globe(2)

The tree with one root with n children corresponds to a string of n arrows.

>>> point = Shape.theta()
>>> arrow = Shape.arrow()
>>> assert Shape.theta(point, point) == arrow.paste(arrow)

id()

Returns the identity map on the shape.

Returns: id – The identity map on the object.
Return type: ShapeMap

boundary(sign=None, dim=None)

Returns the inclusion of the boundary of a given orientation and dimension into the shape.

Note that input and output boundaries of shapes are shapes, so they are returned as shape maps; however, the entire (input + output) boundary of a shape is not a shape, so it is returned simply as a map of oriented graded posets.

Parameters

sign (str, optional) – Orientation: '-' for input, '+' for output, None (default) for both.
dim (int, optional) – Dimension of the boundary (default is self.dim - 1).

Returns

boundary – The inclusion of the requested boundary into the object.

Return type

ShapeMap | OgMap

Examples

>>> point = Shape.point()
>>> arrow = Shape.arrow()
>>> binary = arrow.paste(arrow).atom(arrow)
>>> assert binary.boundary('-').source == arrow.paste(arrow)
>>> assert binary.boundary('+').source == arrow
>>> assert binary.boundary('-', 0).source == point
>>> assert binary.boundary('-').target == binary

atom_inclusion(element)

Returns the inclusion of the closure of an element, which is an atomic shape, in the shape.

Parameters: element (El) – An element of the shape.
Returns: atom_inclusion – The inclusion of the closure of the element.
Return type: ShapeMap

Examples

>>> arrow = Shape.arrow()
>>> globe = Shape.globe(2)
>>> whisker_l = arrow.paste(globe)
>>> assert whisker_l.atom_inclusion(El(2, 0)).source == globe

initial()

Returns the unique map from the initial, empty shape.

Returns: initial – The unique map from the empty shape.
Return type: ShapeMap

Examples

>>> point = Shape.point()
>>> empty = Shape.empty()
>>> assert point.initial() == empty.terminal()
>>> assert empty.initial() == empty.id()

terminal()

Returns the unique map to the point, the terminal shape.

Returns: terminal – The unique map to the point.
Return type: ShapeMap

Examples

>>> point = Shape.point()
>>> assert point.terminal() == point.id()

inflate(collapsed=None)

Given a closed subset of the boundary of the shape, forms a cylinder on the shape, with the sides incident to the closed subset collapsed, and returns its projection map onto the original shape.

This is mainly used in constructing units and unitors on diagrams; see diagrams.Diagram.unit(), diagrams.Diagram.lunitor(), diagrams.Diagram.runitor().

Parameters: collapsed (Closed, optional) – A closed subset of the boundary of the shape (default is the entire boundary).
Returns: inflate – The projection map of the “partially collapsed cylinder” onto the shape.
Return type: Closed
Raises: ValueError – If collapsed is not a subset of the boundary.

all_layerings()

Returns an iterator on all layerings of a shape of dimension n into shapes with a single n-dimensional element, pasted along their (n-1)-dimensional boundary.

Returns: all_layerings – The iterator on all layerings of the shape.
Return type: Iterable

generate_layering()

Assigns a layering to the shape, iterating through all the layerings, and returns it.

Returns: layers – The generated layering.
Return type: list[ShapeMap]

Examples

>>> arrow = Shape.arrow()
>>> globe = Shape.globe(2)
>>> chain = globe.paste(globe, 0)
>>> chain.generate_layering()
>>> assert chain.layers[0].source == arrow.paste(globe)
>>> assert chain.layers[1].source == globe.paste(arrow)
>>> chain.generate_layering()
>>> assert chain.layers[0].source == globe.paste(arrow)
>>> assert chain.layers[1].source == arrow.paste(globe)

draw(**params)

Bound version of strdiags.draw().

Calling x.draw(**params) is equivalent to calling strdiags.draw(x, **params).

draw_boundaries(**params)

Bound version of strdiags.draw_boundaries().

Calling x.draw_boundaries(**params) is equivalent to calling strdiags.draw_boundaries(x, **params).
